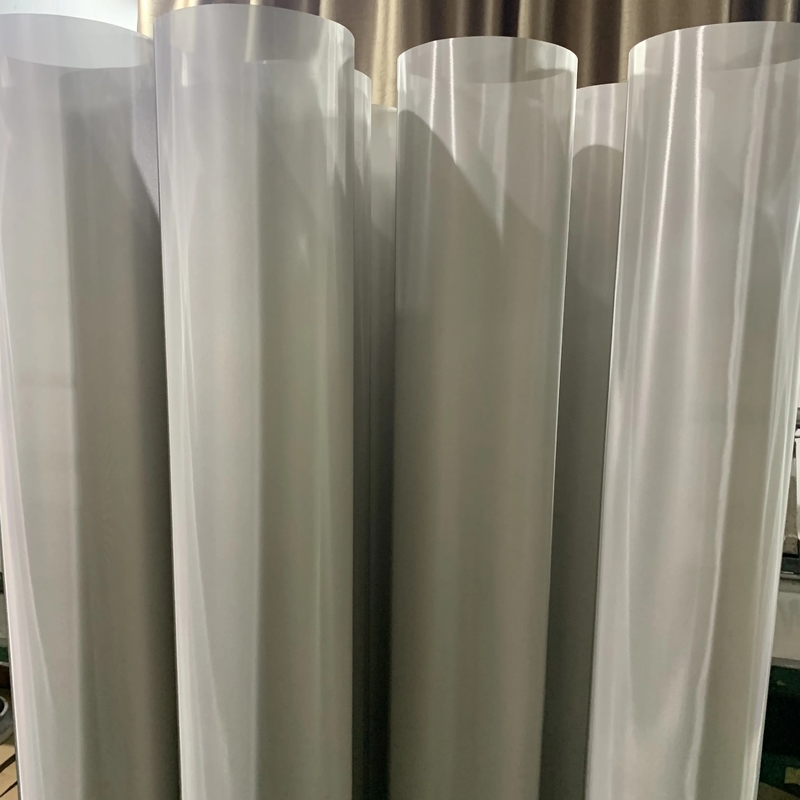

High Open Area Rotary Silk Screen Textile Pattern Rollers 125 155 165 195Mesh
Textile Machinery Spare Parts Specification:
REPEAT(mm) 640, 725,819,914,1018,1206,1450,1680
| Mesh | Thickness(μm) | Open area | Hole diameter |
| 125 | 100-105 | 14-16 |
79 |
| 155 | 100-105 | 12-13 | 60 |
| 165 | 100-105 | 12-13 | 71 |
| 195 | 100-105 | 15-16 | 52 |
LENGTH(mm) 1410-3500
ED=Extra thickness
Textile Machinery Spare Parts Main Features
1. Strong resistance: safe operation, durable
2. Strength: long circle network life of printing machine
3. Net holes are neatly precise: the permeability of the output pigment is good
4. Same quality: uniform and uniform color, beautiful pattern
Advantage :
Dyestuff saving by High mesh screens: due to the high density of holes, unique involuted hole shape, and minimized nickel dam, the coverage of dyestuff paste on the fabrics has largely increased compared with conventional Penta screens. For the same amount/intensity of dyestuff deposit on surface of fabric, less squeegee/ magnetic roller pressure is required; as a result, substantial saving on dyestuff paste is achieved. Experiments have proved that up to 19% of paste volume can be saved at multiple printing mills around the world.
Delivery time: within 10 to 20days
Package:plywood cases or as you required
